plot
[1]:
%load_ext autoreload
%autoreload 2
[1]:
import greatpy as great
import bindome as bd
import matplotlib.pyplot as plt
import seaborn as sns
import pandas as pd
import numpy as np
import time
import warnings
warnings.filterwarnings("ignore")
[2]:
test = "../data/tests/test_data/input/01_random.bed"
regdom = "../data/human/hg38/regulatory_domain.bed"

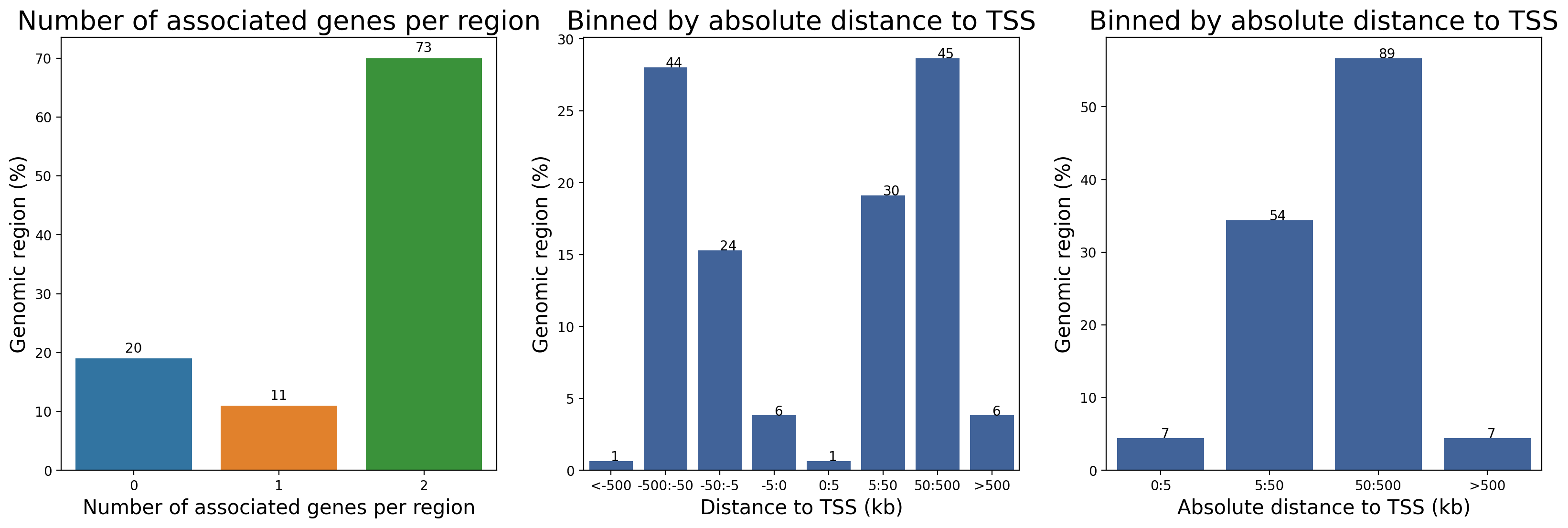

Count plot
[3]:
fig,ax = plt.subplots(1,3,figsize = (20,6),dpi=200)
great.pl.graph_nb_asso_per_peaks(test,regdom,ax[0])
great.pl.graph_dist_tss(test,regdom,ax[1])
great.pl.graph_absolute_dist_tss(test,regdom,ax[2])
plt.show()
Dotplot

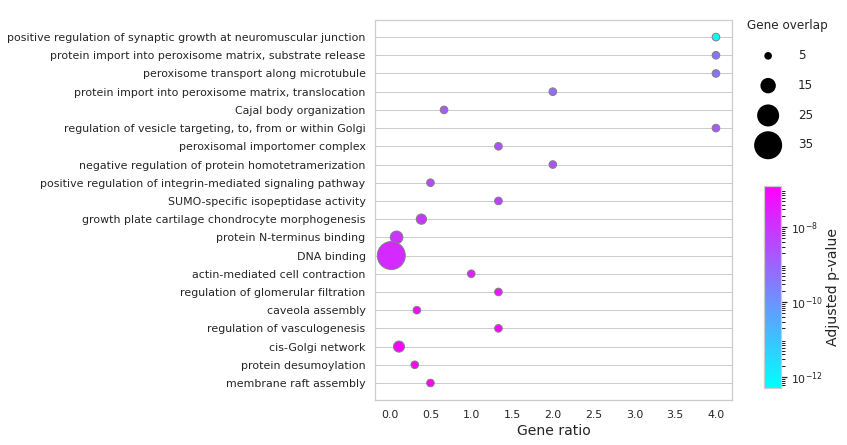

Dotplot of the enrichment
[5]:
enrichment = great.tl.enrichment(
test,
regdom,
"../data/human/hg38/chr_size.bed",
"../data/human/ontologies.csv"
)
[6]:
plot = enrichment.rename(columns = {"binom_p_value" : "p_value", "go_term":"name"})
plt.figure(figsize = (8,7))
great.pl.plot_enrich(plot)

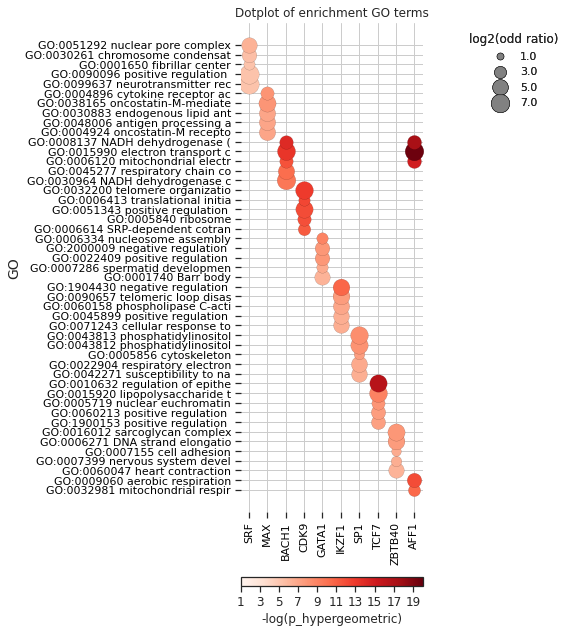

Dotoplot of multi-enrichment sample
[7]:
test = [
"SRF:Ishikawa,A-673-clone-Asp114,K-562,MCF-7,Hep-G2",
"MAX:K-562,WA01,HeLa-S3", "BACH1:A-549,GM12878",
"CDK9:A-375,MM1-S,MV4-11,P493-6,BT-474,HEK293T",
"GATA1:erythroblast,HUDEP-2,K-562", "IKZF1:K-562,GM12878,HSPC",
"SP1:liver,A-375,Hep-G2,HEK293,GM12878,A-549,K-562,HEK293T,WA01",
"TCF7:Hep-G2,GM12878,K-562", "ZBTB40:MCF-7,Hep-G2,GM12878",
"AFF1:MV4-11,K-562"
]
results = great.tl.enrichment_multiple(
tests = test,
regdom_file = "../data/human/hg38/regulatory_domain.bed",
chr_size_file = "../data/human/hg38/chr_size.bed",
annotation_file = "../data/human/ontologies.csv",
binom = True,
hypergeom = True,
)
[11]:
fig = plt.figure(figsize = (15, 12))
p_val,odd_ratio,df = great.pl.dotplot_multi_sample(results,fig = fig,show_term_name = True,term_name_nchars = 20)
[16]:
df.head(10)
[16]:
| id | go_term | binom_p_value | binom_fold_enrichment | hypergeom_p_value | hypergeometric_fold_enrichment | intersection_size | recall | index | |
|---|---|---|---|---|---|---|---|---|---|
| 0 | GO:0051292 | nuclear pore complex assembly | 8.97009e-04 | 3.18950e+03 | 6.28405e+00 | 4.94165e+00 | 2.00000e+00 | 1.53846e-01 | 0 |
| 1 | GO:0030261 | chromosome condensation | 1.27056e-03 | 2.67271e+03 | 5.51863e+00 | 4.39416e+00 | 2.00000e+00 | 1.05263e-01 | 0 |
| 2 | GO:0001650 | fibrillar center | 5.87653e-03 | 3.85300e+02 | 5.30190e+00 | 2.54406e+00 | 4.00000e+00 | 2.91971e-02 | 0 |
| 3 | GO:0090096 | positive regulation of metanephric cap mesench... | 2.80032e-02 | 2.42984e+03 | 5.29709e+00 | 7.64209e+00 | 1.00000e+00 | 1.00000e+00 | 0 |
| 4 | GO:0099637 | neurotransmitter receptor transport | 6.30720e-03 | 1.09058e+04 | 5.29709e+00 | 7.64209e+00 | 1.00000e+00 | 1.00000e+00 | 0 |
| 0 | GO:0004896 | cytokine receptor activity | 3.31342e-03 | 8.66841e+02 | 7.98072e+00 | 3.58059e+00 | 3.00000e+00 | 6.97674e-02 | 1 |
| 1 | GO:0038165 | oncostatin-M-mediated signaling pathway | 5.28500e-02 | 1.56594e+03 | 7.93887e+00 | 6.00685e+00 | 1.00000e+00 | 2.50000e-01 | 1 |
| 2 | GO:0030883 | endogenous lipid antigen binding | 1.45583e-02 | 5.79649e+03 | 7.03282e+00 | 5.42189e+00 | 1.00000e+00 | 1.66667e-01 | 1 |
| 3 | GO:0048006 | antigen processing and presentation, endogenou... | 1.45583e-02 | 5.79649e+03 | 7.03282e+00 | 5.42189e+00 | 1.00000e+00 | 1.66667e-01 | 1 |
| 4 | GO:0004924 | oncostatin-M receptor activity | 5.19264e-02 | 1.59456e+03 | 7.03282e+00 | 5.42189e+00 | 1.00000e+00 | 1.66667e-01 | 1 |
[17]:
p_val.head()
[17]:
| index | SRF | MAX | BACH1 | CDK9 | GATA1 | IKZF1 | SP1 | TCF7 | ZBTB40 | AFF1 |
|---|---|---|---|---|---|---|---|---|---|---|
| test | ||||||||||
| GO:0051292 nuclear pore complex | 6.28405e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 |
| GO:0030261 chromosome condensat | 5.51863e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 |
| GO:0001650 fibrillar center | 5.30190e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 |
| GO:0090096 positive regulation | 5.29709e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 |
| GO:0099637 neurotransmitter rec | 5.29709e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 | 1.00000e+00 |
[18]:
odd_ratio.head()
[18]:
| index | SRF | MAX | BACH1 | CDK9 | GATA1 | IKZF1 | SP1 | TCF7 | ZBTB40 | AFF1 |
|---|---|---|---|---|---|---|---|---|---|---|
| test | ||||||||||
| GO:0051292 nuclear pore complex | 4.94165e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 |
| GO:0030261 chromosome condensat | 4.39416e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 |
| GO:0001650 fibrillar center | 2.54406e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 |
| GO:0090096 positive regulation | 7.64209e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 |
| GO:0099637 neurotransmitter rec | 7.64209e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 | 0.00000e+00 |
